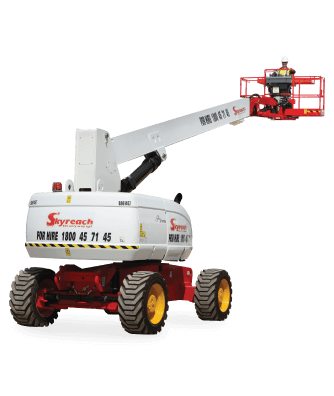

85ft (26.21m) Diesel JLG Boom Lift

Diesel 86ft (26.21m) JLG Straight Stick Boom Lift has 4WD capabilities, full height navigation and maneuverability, and is fitted with a generator. With a hydraulic jib providing extra reach, Boom Lift is perfect for up 'n' over access. Supplying safety from a maximum working height of 92ft (28.21m) for up to 2 people, this machine offers a horizontal outreach length of 75ft (22.86m).

Help Me Choose

Platform Height (max.) 26.21m

Working Height 28.21m

Platform Rotation Angle 180°

Jib Raise Angle 70°

Jib Lower Angle 60°

Jib Articulation Range 130°

Maximum Horizontal Outreach 22.86m

Platform Capacity 230kg

Slewing Angle 360°

Continuous Slew Yes

Stowed Length 12.19m

Stowed Height 3.05m

Overall Width 2.49m

Wheelbase 3.05m

Ground Clearance 0.30m

Platform Width 2.44m

Platform Length 0.91m

Overall Jib Length 1.83m

Tailswing 1.42m

Power Source Diesel

Engine Power 48kW

Genset 5.5kVA Miller

DC Voltage 12V

DC Power 1000CCA

Auxiliary Power 12V Pump

Tyre Size 15-625

Tyre Type Urethane Filled

Drive Speed Elevated 0.8km/h

Gradeability with 4WD 45%

Drive Speed - 4WD 5.6km/h

Fuel Tank Capacity 117.35 Ltr

Hydraulic Tank Capacity 181.7 Ltr

Operating Weight 17,200kg

Operators Licence High Risk Work Licence "WP"

Features

4WD
Foam-filled tyres
Generator fitted
Hydraulic jib
