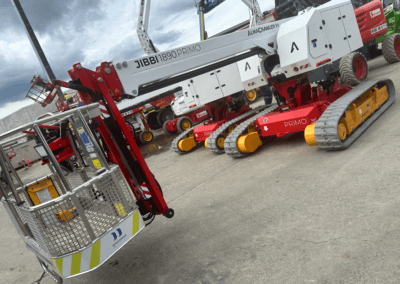

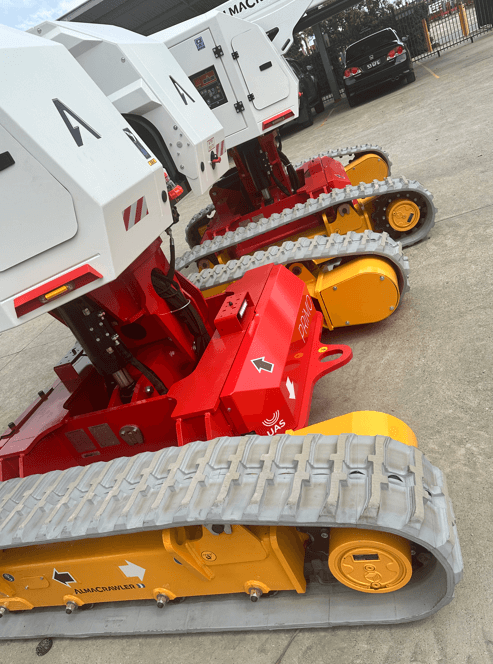

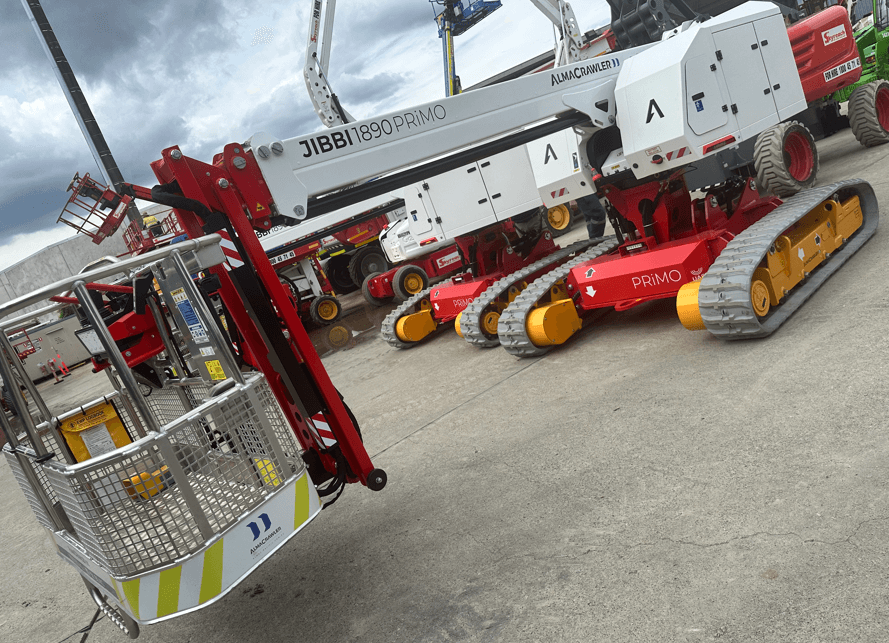

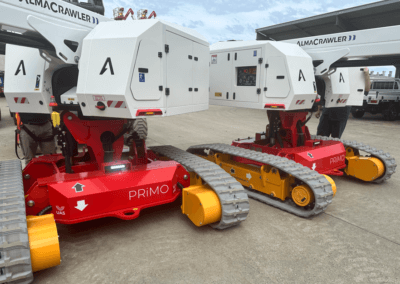

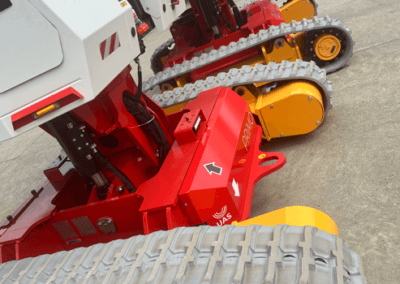

Full Electric 58ft Jibbi Crawler Boom Lift

The Jibbi 1890 PRiMO is designed to eliminate jobsite obstacles, with an 18m working height, it can safely be driven up to 14m and 15° lateral and logitudinal inclination, drastically enhancing efficiency and operator productivity.

Help Me Choose

Max working height 17,90 m

Max height basket floor 15,90 m

Max moving height 13,80 m

Max outreach (load 140 kg) 9,92 m

Max outreach (load 250 kg) 8,32 m

Rotation angle +/- 190°

Basket size 1,80 x 0,70 m

Basket rotation angle +/- 70°

Max basket capacity 250 Kg (2 p.)

Length in stowed position 5,86 m

Width 2,20 m

Min height in stowed position 2,16 m

Longitudinal leveling +/-15,6°

Lateral leveling +/-15,6°

Max gradeability 25°

Max side greadeability 25°

Drive speed (fast) 4,50 Km/h

Drive speed while at high 0,60 Km/h

Anti-Entrapment System Yes

Traffic load (Load in basket 140kg) - ELC / LTH 330Ah / LTH 440Ah 4,89 kN/m2 / 4,56 kN/m2 / 4,57 kN/m2

Total weight - ELC / LTH 330Ah / LTH 440Ah ~6300 Kg / ~5870 Kg / ~5910 Kg

Main Power Source - ELC / LTH 330Ah / LTH 440Ah Lead acid power pack 420Ah-48V / Lithium power pack 330Ah-48V / Lithium power pack 440Ah-48V

Re-charging time - Output current 65A at 230V; 25A at 85V (ELC / LTH 330Ah / LTH 440Ah) 6,5 h at 230V / 5,0 h at 230V / 6,5 h at 230V

N°1 battery charger 85-265V 50/60Hz 65A max - Automatic setting Yes

N°2 Electric Gearmotors 7.5 kW 48V each (IP67) Yes

Electric pump 4,5KW 48V Yes

Non-marking tracks Yes

Kit Works Lights Yes

Arctic lubricant for cold climate Yes

Ultrasonic Anti-Collision System Yes

Operators Licence High Risk Work Licence "WP"
