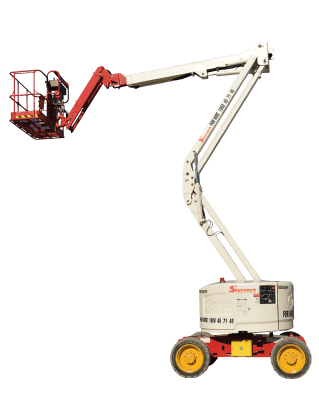

45ft (13.86m) Diesel Genie Knuckle Boom Lift

Diesel Articulated 45ft Genie Knuckle Boom Lift is 4WD, and suitable for outdoor and rough terrain use. This machine is designed to reach up 'n' over obstacles. Supplying safety at a working height of 15.86m with the capacity for teams of up to 2 people, this unit also has a horizontal platform outreach of 7.52m. 45ft Diesel Knuckle Boom Lifts are also available in a JLG model - hire your equipment today from Skyreach.

Help Me Choose
45ft (13.86m) Diesel Genie Knuckle Boom Lift
Working height maximum 15.86 m 51 ft 6 in
Platform height maximum 13.86 m 45 ft 6 in
Horizontal reach maximum 7.52 m 24 ft 8 in
Up and over clearance maximum 7.14 m 23 ft 5 in
Platform length 0.76 m 2 ft 6 in
Platform width 1.83 m 6 ft
Height - stowed 2.13 m 7 ft
Length - stowed 6.65 m 21 ft 10 in
Width 2.29 m 7 ft 6 in
Wheelbase 2.03 m 6 ft 8 in
Ground clearance - center 0.38 m 1 ft 2.8 in
Lift capacity 227 kg 500 lbs
Platform rotation 160°
Vertical Jib rotation 135°
Turntable rotation 355° non-continuous
Turntable tailswing zero
Drive speed - stowed 7.24 km/h 4.5 mph
Drive speed - raised 0.98 km/h 0.6 mph
Gradeability - 4WD - stowed 45%
Turning radius - inside 1.68 m 5 ft 6 in
Turning radius - outside 4.50 m 14 ft 9 in
Controls 12 V DC proportional
Tires 315/55 D20
Power source Deutz D2011L03i 3 cylinder diesel 48 hp (35.8 kW)
Auxiliary power unit 12 V DC
Hydraulic tank capacity 83 L 22 gal
Fuel tank capacity 64.4 L 17 gal
Weight - 4WD 6134 kg 13,523 lbs
Standards Compliance AS 1418.10
Operators Licence High Risk Work Licence "WP"

Features

  • 4WD
  • Foam-filled tyres
  • Rough terrain
  • Hydraulic jib
  • Generator fitted
