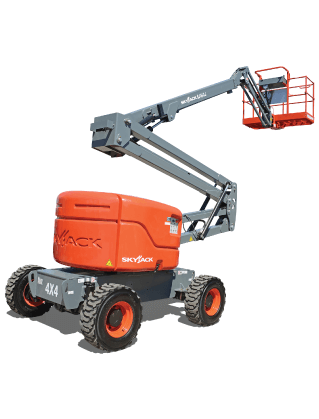

45ft (14.10m) Diesel Skyjack Knuckle Boom Lift

Diesel Articulated 46ft (14.10m) Skyjack Knuckle Boom Lift is 4WD, and suitable for outdoor and rough terrain use. This machine is designed to reach up 'n' over obstacles. Supplying safety at a working height of 16.10m with the capacity for teams of up to 2 people, this unit also has a horizontal platform outreach of 24ft (7.54m)

Help Me Choose
45ft (14.10m) Diesel Skyjack Knuckle Boom Lift
Work Height 15.93 m 52’3”
Platform Height 14.10 m 46’3”
Horizontal Reach 7.54 m 24’9”
Up and Over Height 7.45 m 24’5”
Platform Size 0.76 x 1.83 m 30” x 72”
Stowed Width 2.29 m 90”
Tailswing Zero
Stowed Height 2.06 m 82”
Stowed Length 6.53 m 21’5”
Wheelbase 2.03 m 80”
Ground Clearance 0.39 m 16”
Rotation 355° NC
Platform Rotation 170°
Jib Length 1.52 m 5’
Jib Range +/- +70° / -75°
Weight 6,033 kg 13,300 lbs
Gradeability 45%
Turning Radius (Inside) 2.49 m 98”
Turning Radius (Outside) 4.52 m 178”
Axle Oscillation 12.70 cm 5”
Drive Speed (High speed) 7.7 km/h 4.8 mph
Capacity 227 kg 500 lbs
Local Floor Load ( With Rated Load) 793 kPa 115 psi
Overall Floor Load (With Rated Load) 9.58 kPa 200 psf
Maximum # of Persons 2
Tire Type Air Filled
Tire Size 12 x 16.5
Diesel Engine 48 HP
Dual Fuel Engine 82 HP
Fuel Tank Capacity 64 L 17 gallon
Hydraulic Reservoir 91 L 24 gallon
Operators Licence High Risk Work Licence "WP"

Features

  • 4WD
  • Hydraulic jib
  • Generator fitted
