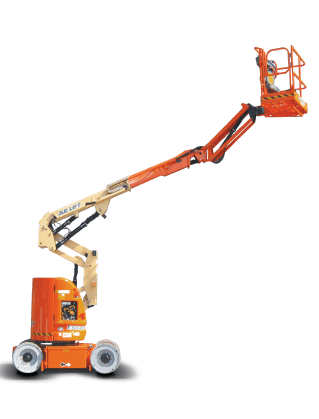

30ft (8.97m) Electric JLG Knuckle Boom Lift

Electric Articulated 30ft (8.97m) JLG Knuckle Boom Lift is suitable for indoor and slab applications. With low emission and noise, it is designed to reach up 'n' over obstacles with its high-efficiency electric power. Supplying safety at a working height of 10.97m (horizontal outreach: 20ft (6.12m)), with the capacity for 2 people, this unit also has non-marking tyres. 30ft Boom Lifts are also available in a Genie model.

Help Me Choose

Platform Height 8.97 m

Horizontal Outreach 6.12 m

Up and Over Height 4.0 m

Swing 355° Non-Continuous

Platform Capacity 230 kg

Platform Rotator 180° Hydraulic

Weight 7,100 kg

Overall Jib Length 1.22 m

Jib Rotation Range 180°

Jib Articulation Range 144° (+84° / - 60°)

Drive Speed 7.2 km/h

Gradeability 25%

Turning Radius (Inside) 1.52 m

Turning Radius (Outside) 3.10 m

Electrical System 48V DC

Batteries 8 x 6V, 370 amp-hr (305 amp-hr on E300AJP)

Drive Motors Dual Electric Traction—AC

Hydraulic System 11.4 L

Motor / Pump Permanent Magnet Motor / Gear Pump

Tyres 25 x 7 x 12 Solid Non-Marking

Platform Size 0.76 x 1.22 m

Overall Width 1.22 m

Tailswing Zero

Stowed Height 2.01 m

Stowed Length 5.74 m

Wheelbase 1.65 m

Ground Clearance 10 cm

Operators Licence Duty of Care Operator Training (e.g. EWPA Yellow Card)

Features

Zero emissions
Non-marking tyres
Hydraulic jib
