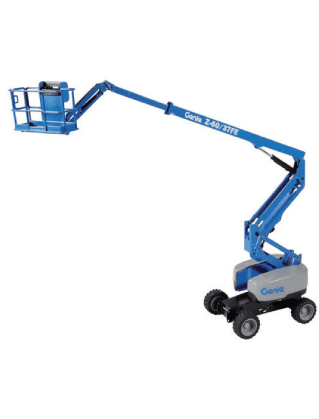

60ft (18.16m) Hybrid Genie Knuckle Boom Lift
The Hybrid 60ft (18.16m) Genie Knuckle Boom Lift is suitable for outdoor, 4WD, indoor, and slab use. With low noise battery power, and low emission diesel capabilities, the Hybrid Genie is designed to reach up 'n' over obstacles with high-efficiency. Supplying safety at a working height of 20.16m (horizontal outreach: 36ft (11.15m)), with the capacity for two people, this unit also has non-marking tyres.
Working height maximum 20.16 m 65 ft 7 in
Platform height maximum 18.16 m 59 ft 7 in
Horizontal reach maximum 11.15 m 36 ft 7 in
Up and over clearance maximum 7.39 m 24 ft 3 in
Platform length 0.91 m 3 ft
Platform width 2.44 m 8 ft
Height - stowed 2.54 m 8 ft 4 in
Height - transport (jib tucked under) 2.62 m 8 ft 7 in
Length - stowed 8.15 m 26 ft 9 in
Length - transport (jib tucked under) 6.30 m 20 ft 8 in
Width 2.49 m 8 ft 2 in
Wheelbase 2.49 m 8 ft 2 in
Ground clearance - center 0.33 m 1 ft 1 in
Lift capacity 227 kg 500 lbs
Platform rotation 160°
Vertical jib rotation 135°
Turntable rotation 355° non-continuous
Turntable tailswing - riser up 0.58 m 1 ft 11 in
Turntable tailswing - riser down 0.81 m 2 ft 8 in
Drive speed - stowed 6.4 km/h 4.0 mph
Drive speed - raised 1.0 km/h 0.7 mph
Gradeability - stowed 45%
Turning radius - inside 2.51 m 8 ft 3 in
Turning radius - outside 5.69 m 18 ft 8 in
Controls 24V DC proportional
Tyres 355/55D 625
Drive system 34 V 3-Phase AC
Power source 48 V DC (eight 6 V batteries) 390 Ah capacity, 24.8 hp (18.5 kW) Kubota D1105 T4f driven AC generator
Auxiliary power unit 12 V DC
Hydraulic tank capacity 68.4 L 18 gal
Fuel tank capacity 64.4 L 17 gal
Sound pressure level (ground workstation) 77 dBA
Sound pressure level (platform workstation) 72 dBA
Vibration 0.55 m/s² (1.81 ft/s²)
Weight 7,686 kg 16,944 lbs
Standards Compliance AS 1418.10
Operators Licence High Risk Work Licence "WP"
Features
- 4WD
- Rough terrain
- Foam-filled tyres
- Non-marking tyres
- Hydraulic jib
- Generator fitted
The Hybrid 60ft (18.16m) Genie Knuckle Boom Lift is suitable for outdoor, 4WD, indoor, and slab use. With low noise battery power, and low emission diesel capabilities, the Hybrid Genie is designed to reach up 'n' over obstacles with high-efficiency. Supplying safety at a working height of 20.16m (horizontal outreach: 36ft (11.15m)), with the capacity for two people, this unit also has non-marking tyres.
