Material Lifts
20ft Genie Material Lift
- Working Height
- 6.46m21ft 3in
- Powered By
- None
- Platform Capacity
- 363kg800lbs
- Machine Width
- 0.8m2ft 8in

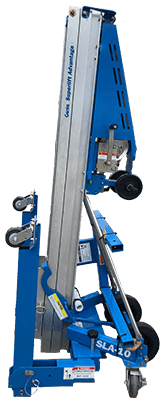

10ft Genie Material Lift
The Genie SLA10 Material Lift is designed for raising duct systems and other light-weight materials. It is a versatile and multi-purpose unit for construction, industrial, air conditioning, HVAC, and warehouse solutions. This duct and Material Lift offers hand-hoist telescopic reach for loading and raising a maximum 454kg (1000lbs) to a max mast height of 11ft 5.5in (3.49m).
Working height: STANDARD forks - down 2.97 m 9 ft 9 in
Working height: STANDARD forks - up 3.49 m 11 ft 5.5 in
Working height: adjustable forks - down 2.97 m 9 ft 9 in
Working height: adjustable forks - up 3.49 m 11 ft 5.5 in
Working height: flat forks 2.97 m 9 ft 9 in
Working height: boom 3.28 m 10 ft 9 in
Working height: load platform - forks down 2.97 m 9 ft 9 in
Working height: load platform - forks up 3.49 m 11 ft 5.5 in
Height - stowed 1.99 m 6 ft 6.5 in
Length - stowed 0.74 m 2 ft 5 in
Length - operating 1.51 m 4 ft 11.5 in
Width - stowed 0.80 m 2 ft 7.5 in
Width - with outriggers lowered 1.85 m 6 ft 1 in
Width - straddle base: minimum 0.80 m 2 ft 7.5 in
Width - straddle base: maximum 1.47 m 4 ft 10 in
Width - straddle base: maximum inside 1.27 m 4 ft 2 in
Ground clearance - centre 0.05 m 2 in
Load height minimum 0.15 m 6 in
Load capacity: 18 in (46 cm) load centre 454 kg 1,000 lbs
Load capacity: 24 in (61 cm) load centre 454 kg 1,000 lbs
Load capacity: 42 in (107 cm) load centre 181 kg 400 lbs
Average cranks: standard winch 27.8 cranks/m 8.5 cranks/ft
Average cranks: two speed winch, high 13.1 cranks/m 4 cranks/ft
Average cranks: two speed winch, low 49.2 cranks/m 15 cranks/ft
Weight: Standard 118 kg 260 lbs
Weight: Straddle base 137 kg 303 lbs
The Genie SLA10 Material Lift is designed for raising duct systems and other light-weight materials. It is a versatile and multi-purpose unit for construction, industrial, air conditioning, HVAC, and warehouse solutions. This duct and Material Lift offers hand-hoist telescopic reach for loading and raising a maximum 454kg (1000lbs) to a max mast height of 11ft 5.5in (3.49m).
