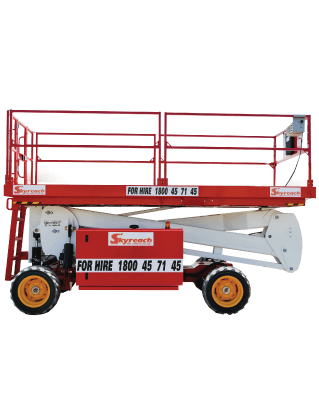

30ft (9m) Diesel Sigma Bi-Levelling Scissor Lift

Diesel 30ft (9.00m) MEC Bi-Levelling Sigma Lift (named for its sigma (Σ) shape) has 4WD accessibility and is suited to outdoor use. Supplying safety at a working height of 11.00m for a team of up to 5 people, this machine has full drive and navigation at max height. The Sigma Lift offers platform leveling on slopes with an automatic or manual selection and a 14° side to side and 10° back and forwards oscillation.

Help Me Choose

Working Height 11 m* 36 ft.*

Platform Height 9 m 30 ft.

Maximum Drive Height 9 m 30 ft.

Stowed Height (Top Guardrail) 2.67 m 105 in.

Stowed Height (Rails Folded) 1.78 m 70 in.

Guardrail Height 1.1 m 43½ in.

Toeboard Height 15 cm 6 in.

Ground Clearance 25 cm 10 in.

Length - Stowed (Overall) 4.4 m 14 ft. 6 in.

Width 2.13 m 84 in.

Platform Length 4.27 m 14 ft.

Platform Width 1.83 m 72 in.

Wheelbase 2.54 m 100 in.

Lift Capacity 680 kg 1,500 lbs.

Structure Leveling 14° side to side, 10° fore and aft

Raise/Lower Speed 30/40 sec.

Drive Speed (Stowed) 6.4 km/h 4 mph

Drive Speed (Raised) .6 km/h .4 mph

Gradeability 45%/24.2°

Turning Radius (Inside) 2.44 m 8 ft.

Turning Radius (Outside) 5.08 m 16 ft. 8 in.

Weight 3400 kg** 7,500 lbs**

Brakes Dual rear wheel multi-disc

Power Source Kubota DF752 Dual Fuel

Controls Proportional

Tires 26 X 12D / 380NHS

Fuel Capacity 57 L 15 gal.

Hydraulic Fluid Capacity 87 L 23 gal.

Operators Licence Duty of Care Operator Training (e.g. EWPA Yellow Card)

Features

Rough terrain
Foam-filled tyres
4WD
