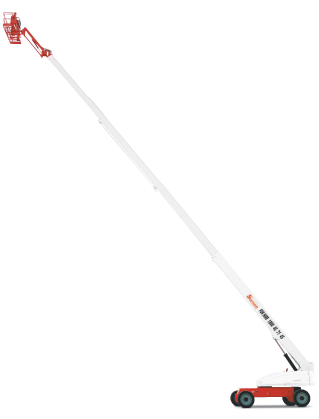

135ft (41.15m) Diesel Genie Boom Lift

The diesel 135ft Genie Straight Stick Boom Lift has 4WD capabilities, full height navigation and maneuverability, and is fitted with a generator. With a massive 30ft hydraulic jib providing extra accessibility, this Boom Lift is perfect for up 'n' over access and is available to hire from Skyreach. Supplying safety from a maximum working height of 43.15m for up to 3 people, this machine offers a horizontal outreach length of 24.38m.

Help Me Choose

Working height maximum 43.15 m 141 ft

Platform height maximum 41.15 m 135 ft

Horizontal reach maximum 27.43 m 90 ft

Below ground reach 6.00 m 19 ft 8 in

Platform length 0.91 m 3 ft

Platform width 2.44 m 8 ft

Height - stowed 3.05 m 10 ft

Length - stowed 19.76 m 64 ft 10 in

Length - transport (jib tucked under) 13.28 m 43 ft 7 in

Width - axles retracted 2.49 m 8 ft 2 in

Width - axles extended 3.94 m 12 ft 11 in

Wheelbase - axles retracted 4.11 m 13 ft 6 in

Wheelbase - axles extended 4.11 m 13 ft 6 in

Ground clearance - center 0.38 m 1 ft 3 in

Lift capacity 300 kg / 454 kg 660 lb / 1,000 lb

Platform rotation 160°

Vertical jib rotation - up/down 70° / 55°

Turntable rotation 360° continuous

Turntable tailswing - axle retracted 1.14 m 3 ft 9 in

Turntable tailswing - axle extended 1.70 m 5 ft 7 in

Drive speed - stowed 4.3 km/h 2.7 mph

Drive speed - out of stowed 0.65 km/h 0.4 mph

Gradeability - stowed 35%

Turning radius - axle retracted: inside 8.03 m 26 ft 4 in

Turning radius - axle retracted: outside 9.96 m 32 ft 8 in

Turning radius - axle extended: inside 2.90 m 9 ft 6 in

Turning radius - axle extended: outside 6.17 m 20 ft 3 in

Controls 12 V DC proportional

Tyres 445D50/710HD

Power source Deutz TD2011L04i, 74 hp (55 kW)

Auxiliary power unit 12 V DC

Hydraulic tank capacity 227 L 60 gal

Fuel tank capacity 151 L 40 gal

Weight - 4WD 21,636 kg 47,699 lb

Standards Compliance AS 1418.10

Operators Licence High Risk Work Licence "WP"

Features

4WD
Foam-filled tyres
Rough terrain
Generator fitted
Hydraulic jib
