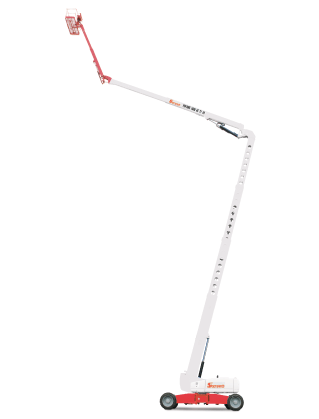

135ft (41.15m) Diesel Genie Knuckle Boom Lift

Diesel Articulated 135ft (41.15m) Genie Knuckle Boom Lift is 4WD, and suitable for outdoor and rough terrain use. This machine is designed to reach up 'n' over obstacles. Supplying safety at a working height of 43.15m with the capacity for teams of up to 2 people, this unit also has a horizontal platform outreach of 59ft (18.03m)

Help Me Choose

Working height maximum 43.15 m 141 ft

Platform height maximum 41.15 m 135 ft

Horizontal reach max - riser extended 18.03 m 59 ft 2 in

Horizontal reach max - riser retracted 21.26 m 69 ft 9 in

Up and over clearance maximum - riser extended 23.01 m 75 ft 6 in

Up and over clearance maximum - riser retracted 9.91 m 32 ft 6 in

Below ground reach 5.87 m 19 ft 3 in

Platform length 0.91 m 3 ft

Platform width 2.44 m 8 ft

Height - stowed 3.07 m 10 ft 1 in

Length - stowed 12.93 m 42 ft 5 in

Width - axles extended 5.03 m 16 ft 6 in

Width - axles retracted 2.49 m 8 ft 2 in

Wheelbase - axles extended 4.72 m 15 ft 6 in

Wheelbase - axles retracted 5.03 m 16 ft 6 in

Ground clearance - center 0.38 m 1 ft 3 in

Lift capacity 272 kg 600 lbs

Platform rotation 160°

Vertical jib rotation 110°

Turntable rotation 360° continuous

Turntable tailswing - axles extended riser up 0.79 m 2 ft 7 in

Turntable tailswing - riser down 4.27 m 14 ft

Drive speed - stowed 4.5 km/h 2.8 mph

Drive speed - raised 1.1 km/h 0.7 mph

Lift speed to full height 96 sec

Gradeability - stowed 45%

Inside turning radius - axles extended 3.02 m 9 ft 11 in

Inside turning radius - axles retracted 6.27 m 20 ft 7 in

Outside turning radius - axles extended 7.34 m 24 ft 1 in

Outside turning radius - axles retracted 8.56 m 28 ft 1 in

Controls 12 V DC proportional

Tyres 445D50/710 18 ply foam-filled

Power source Deutz Diesel TD 2011 L04i 4-cylinder turbo diesel, 74 hp (55 kW)

Auxiliary power unit 12 V DC

Hydraulic tank capacity 246.1 L 65 gal

Fuel tank capacity 151.4 L 40 gal

Weight 20,267 kg 44,681 lbs

Standards Compliance AS 1418.10

Operators Licence High Risk Work Licence "WP"

Features

4WD
Foam-filled tyres
Rough terrain
Hydraulic jib
Generator fitted
