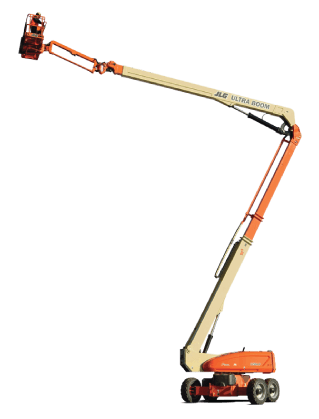

125ft (40.3m) Diesel JLG Knuckle Boom Lift

Diesel Articulated 125ft JLG Knuckle Boom Lift is 4WD, and suitable for outdoor and rough terrain use. This machine is designed to reach up 'n' over obstacles. Supplying safety at a working height of 40.3m with the capacity for teams of up to 2 people, this unit also has a horizontal platform outreach of 19.25m. Contact Skyreach to arrange your knuckle boom hire today.

Help Me Choose

Platform Height 38.30 m

Working Height 40.30 m

Horizontal Reach 19.25 m

Up and Over Height 18.44

Swing 360° Continuous

Platform Capacity — Restricted 450 kg

Platform Capacity — Unrestricted 230 kg

Platform Rotator 180°

JibPLUS® Length 2.44 m

JibPLUS® – Horizontal Motion 125°

JibPLUS® – Vertical Motion 130° (+75/–55)

Weight 21,000 kg

Drive Speed - Lowered 5.2 km/h

Drive Speed – Elevated 0.5 km/h

Gradeability 45%

Turning Radius (Inside) – Axles Retracted 4.39 m

Turning Radius (Inside) – Axles Extended 2.44 m

Turning Radius (Outside) – Axles Retracted 6.86 m

Turning Radius (Outside) – Axles Extended 5.89 m

Diesel Engine Deutz TD2011LO40 T4i 55 kW

Fuel Tank Capacity 117 L

Hydraulic System 202 L

Tyres – Standard 445/50D710 24 Urethane-Filled

Platform Size 0.91 x 2.44 m

Overall Width Axles Retracted 2.49 m

Overall Width Axles Extended 3.81 m

Tailswing 0.91 m

Stowed Height 3.05 m

Overall Length Jib Stowed 11.46 m

Overall Length Jib Deployed 14.48 m

Wheel Base 3.81 m

Ground Clearance – Axle 30 cm

Ground Clearance – Chassis 65 cm

Operators Licence High Risk Work Licence "WP"

Features

4WD
Foam-filled tyres
Generator fitted
Hydraulic jib
