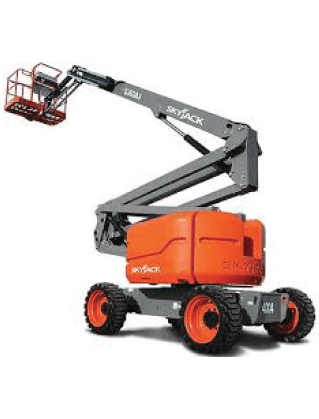

63ft (19.38m) Diesel Skyjack Knuckle Boom Lift

Diesel Articulated 63ft (19.38m) Skyjack Knuckle Boom Lift is 4WD, and suitable for outdoor and rough terrain use. This machine is designed to reach up 'n' over obstacles. Supplying safety at a working height of 21.38m with the capacity for teams of up to 2 people, this unit also has a horizontal platform outreach of 40ft (12.19m)

Help Me Choose

Work Height 21.38 m

Platform Height 19.38 m

Horizontal Reach 12.19 m

Up and Over Height 8.38 m

Platform Size 0.91 x 2.44 m

Stowed Width 2.44 m

Tailswing Zero

Stowed Height 2.54 m

Transportation Height 2.79 m

Stowed Length 9.14 m

Transportation Length 7.75 m

Wheelbase 2.44 m

Ground Clearance 0.33 m

Rotation 360° Continuous

Platform Rotation 170°

Jib Length 1.68 m

Jib Range +/- +65° / -60°

Weight 9,934 kg

Gradeability 45%

Turning Radius (Inside) 2.21 m

Turning Radius (Outside) 5.31 m

Axle Oscillation 10.16 cm

Drive Speed (High speed) 7.3 km/h

Capacity 227 kg

Local Floor Load (With Rated Load) 8.09 kg/sq cm

Overall Floor Load (With Rated Load) 1,224 kg/sq m

Maximum # of Persons 2

Tyre Type Foam-Filled Non-Marking

Tyre Size 355/55D625

Diesel Engine Deutz D2011L04i - 65 HP (48 KW)

Fuel Tank Capacity 115 L

Hydraulic Reservoir 115 L

Operators Licence High Risk Work Licence "WP"

Features

4WD
Foam-filled tyres
Non-marking tyres
Generator fitted
Hydraulic jib
