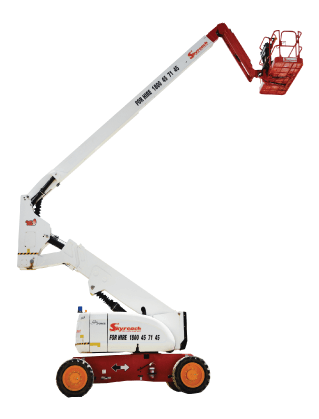

80ft (23.77m) Diesel Genie Knuckle Boom Lift

Diesel Articulated 80ft (23.77m) Genie Knuckle Boom Lift is 4WD, and suitable for outdoor and rough terrain use. This machine is designed to reach up 'n' over obstacles. Supplying safety at a working height of 25.77m with the capacity for teams of up to 2 people, this unit also has a horizontal platform outreach of 60ft (18.29m). 80ft Diesel Knuckle Boom Lifts are also available in a JLG model.

Help Me Choose

Working height maximum 25.77 m 84 ft

Platform height maximum 23.77 m 78 ft

Horizontal reach maximum 18.29 m 60 ft

Up and over clearance maximum 8.83 m 29 ft

Below ground reach 4.83 m 15 ft 10 in

Platform length 0.91 m 3 ft

Platform width 2.44 m 8 ft

Height - stowed 3.00 m 9 ft 10 in

Length - stowed 11.27 m 37 ft

Length - transport 11.27 m 37 ft

Width 2.49 m 8 ft 2 in

Wheelbase 2.85 m 9 ft 4 in

Ground clearance - centre 0.30 m 12 in

Lift capacity 227 kg 500 lbs

Platform rotation 160°

Vertical jib rotation 135°

Turntable rotation 360° continuous

Turntable tailswing - riser up 1.17 m 3 ft 10 in

Turntable tailswing - riser down 2.24 m 7 ft 4 in

Drive speed - stowed 4.83 km/h 3.0 mph

Drive speed - raised 1.1 km/h 0.68 mph

Lift speed to full height 76 sec

Gradeability - 4WD - stowed 45%

Turning radius - 4WS inside 2.13 m 7 ft

Turning radius - 4WS outside 4.57 m 15 ft

Controls 12 V DC proportional

Tyres - RT Lug - Foam filled 445 / 500 710

Power source Deutz TD 2011 L04i 4 cylinder diesel 58 kW (78 hp)

Auxiliary power unit 12 V DC

Hydraulic tank capacity 170 L 45 gal

Fuel tank capacity – diesel machines 132 L 35 gal

Weight 17,010 kg 37,500 lbs

Standards Compliance ANSI A92.5, CSA B354.4, CE Compliance, AS 1418.10

Operators Licence High Risk Work Licence "WP"

Features

4WD
Foam-filled tyres
Hydraulic jib
Rough terrain
Generator fitted
