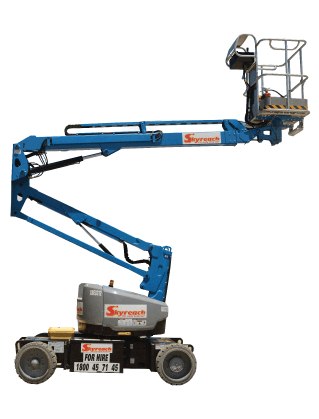

33ft (10m) Electric Genie Knuckle Boom Lift

The Electric Articulated 33ft (10.20m) Genie Knuckle Boom Lift is suitable for indoor and slab applications. With low emission and noise, it is designed to reach up 'n' over obstacles with its high-efficiency electric power. Supplying safety at a working height of 12.20m (horizontal outreach: 18ft (5.57m)), with the capacity for 2 people, this unit also has non-marking tyres. 33ft Boom Lifts are also available in a Nifty model.

Help Me Choose

Working height max. 12 m 38 ft 10 in

Platform height max. 10 m 32 ft 10 in

Horizontal reach max. 5.57 m 18 ft 3 in

Up and over clearance max. 4.28 m 14 ft 1 in

Platform length 0.76 m 2 ft 6 in

Platform width 1.17 m 3 ft 10 in

Height - stowed (tires) 1.98 m 6 ft 6 in

Length - stowed (tires) 4.17 m 13 ft 8 in

Width 1.50 m 4 ft 11 in

Wheelbase 1.90 m 6 ft 3 in

Ground clearance - center 0.15 m 6.0 in

Lift capacity max. - unrestricted 200 kg 440 lb

Jib length —

Turntable rotation 400°

Turntable tailswing 0 cm 0 in

Drive speed - stowed 5.2 km/h 3.2 mph

Gradeability - stowed 30%

Tilt sensor activation (front to back/side to side) 2.5°- 4.5° / 4.5°

Turning radius - inside/outside 1.9 m 6 ft 3 in

Tires (solid, non-marking) 56 × 23 × 43 cm 22 × 9 × 17 in

Power 48V DC (8 × 6V 350Ah)

Drive system 48V 3-Phase AC

Auxiliary power unit 24V DC

Hydraulic tank capacity 20.8 L 6 gal

Weight (tires) 3,671 kg 8,094 lb

Tire contact pressure 483 kPa 70 psi

Occupied floor pressure (tires) 9.72 kPa 203 psf

Sound Pressure level (ground workstation) < 70 dBA

Sound Pressure level (platform workstation) < 70 dBA

Vibrations 2.5 m/s² 8 ft 2 in/s²

Operators Licence Duty of Care Operator Training (e.g. EWPA Yellow Card)

Features

Zero emissions
Non-marking tyres
