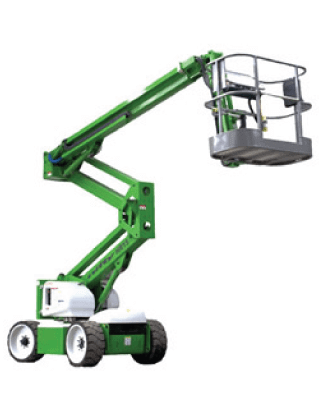

Hybrid 33ft (10.20m) Nifty Knuckle Boom Lift

The hybrid 33ft (10.20m) Nifty Knuckle Boom Lift (HR12) is suitable for indoor, slab, and outdoor applications. Designed to reach up 'n' over obstacles with a narrow base for easy access, it supplies safety at a working height of 12.20m with 6.10m horizontal outreach. With capacity for two people, this unit has the option to run on battery power for quiet, low-emission performance or switch to diesel when extended duty cycles are required. Compact dimensions allow it to pass through standard doorways, navigate tight spaces, and work efficiently around obstacles, making it ideal for urban, indoor, and congested job sites. Contact the Skyreach team to hire this 40ft articulating knuckle boom.

Help Me Choose

Working Height maximum 12.20m 40ft

Platform Height maximum 10.20m 33ft

Horizontal Reach maximum 6.10m 240''

Up and Over Clearance maximum 4.20m 165''

Platform Size 0.65m x 1.10m 26'' x 43''

Machine Height (stowed) 1.90m 75''

Machine Width 1.50m 59''

Machine Length 4.10m 161''

Transport Length (stowed) 4.10m 161''

Ground Clearance (stowed) 0.15m 6''

Max. Platform Occupancy 2 PERSONS

Wind Speed Rating Use INDOOR/OUTDOOR USE

Gradeability - stowed 25%

Total Lift Capacity 200kgs 440lbs

Tyres SOLID NON-MARKING

Machine Weight (approx.) 3100kgs 6834lbs

Power Source BI-ENERGY (DIESEL/ELECTRIC)

Generator 5KVA or 7kva

Fuel Tank Capacity 5 LITRES 1 GALLON

Operators Licence Duty of Care Operator Training (e.g. EWPA Yellow Card)

Features

Non-marking tyres
Hydraulic jib

Our support services

Every Hire includes the support you need

Learn More

01

Fast Service
02

Technical advice
03

On-site service support
04

Safety-first maintenance
05

Flexible hire options
06

24h Support

Not sure what equipment you need?

Answer a few quick questions and we'll recommend the best machine for your project.

Talk to Us

Skyreach tracked boom lift with its basket raised

Before you hire

Frequently asked questions

What type of equipment do you hire?

Skyreach is one of Australia's few specialists in access equipment hire. Our hire fleet includes EWPs; scissor, boom and man lifts; telehandlers; crawlers; hybrid units; lighting towers; specialised access essentials such as duct lifters and pipe racks; plus a wide range of OEM attachments.

Do I need an account to hire from Skyreach?

Yes, we hire access equipment to account customers only – you can find our account application form in the Resources menu.

Can I extend my hire period?

Yes, we can extend your hire if your project is delayed or if site conditions change. Simply contact your local branch and let our team know.

What happens if there is a problem with the equipment on site?

Each branch has a dedicated Field Service Team with fully equipped service vehicles (including mine spec vehicles in relevant areas). We're on call 24/7 to support you and keep your project rolling, including providing emergency service or replacement machines if necessary.

Do you offer wet hire?

No, all our equipment is provided as dry hire without an operator.

Do I need a license to operate the equipment?

Many types of height access equipment require a license for safe, compliant operation. Licensing requirements can vary depending on the category of machine you hire – these are listed under each hire machine, however we also recommend checking with the EWPA for detailed information.
