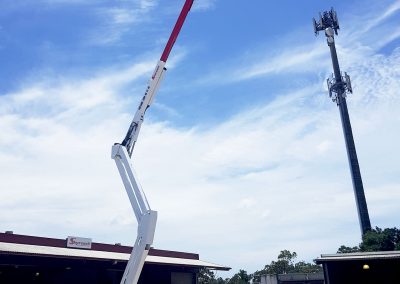

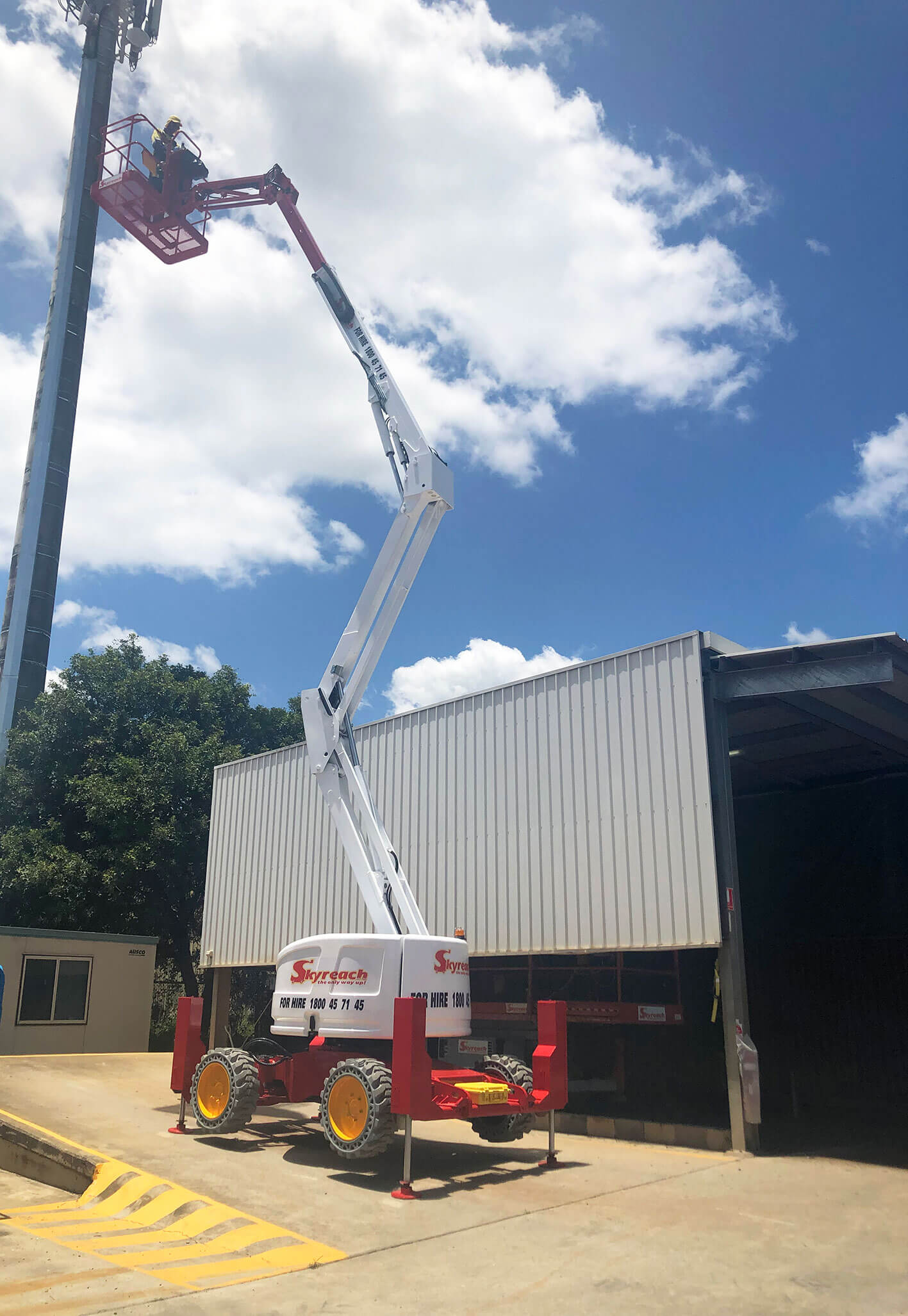

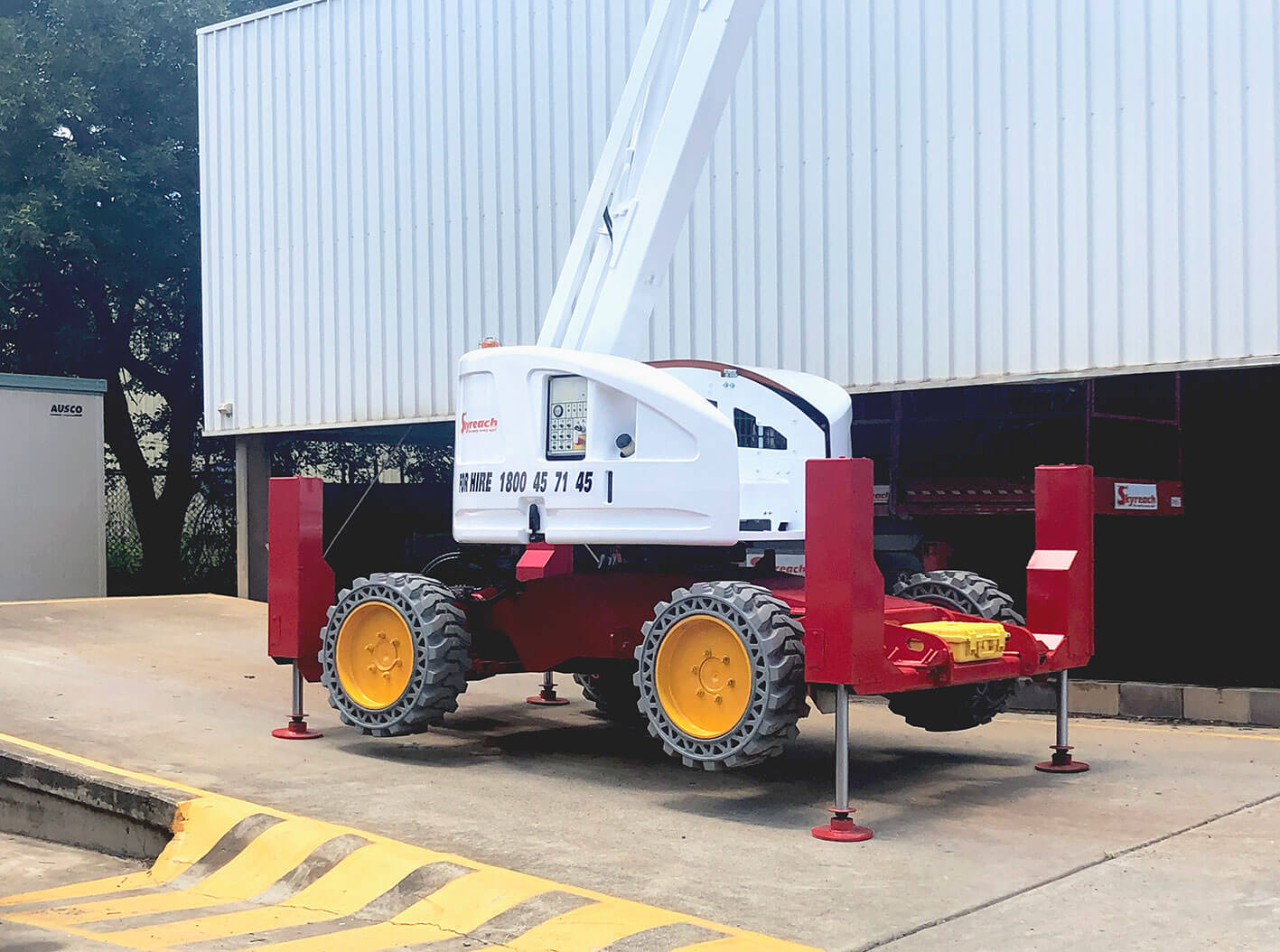

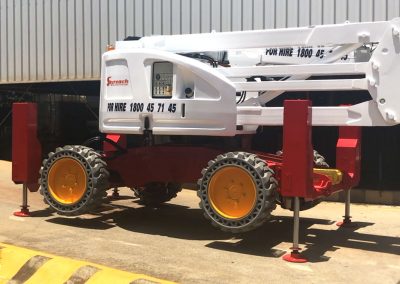

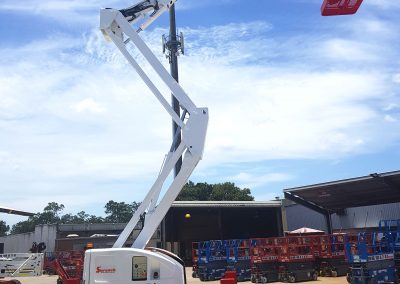

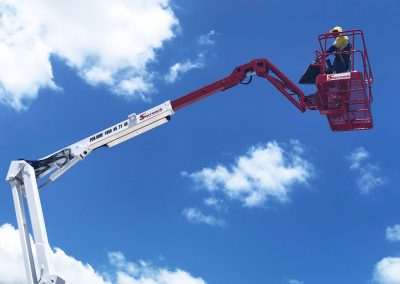

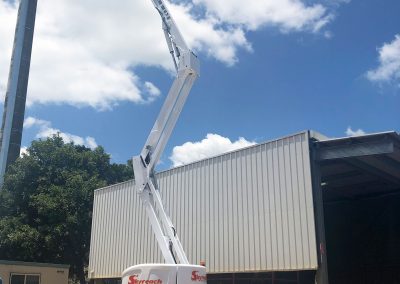

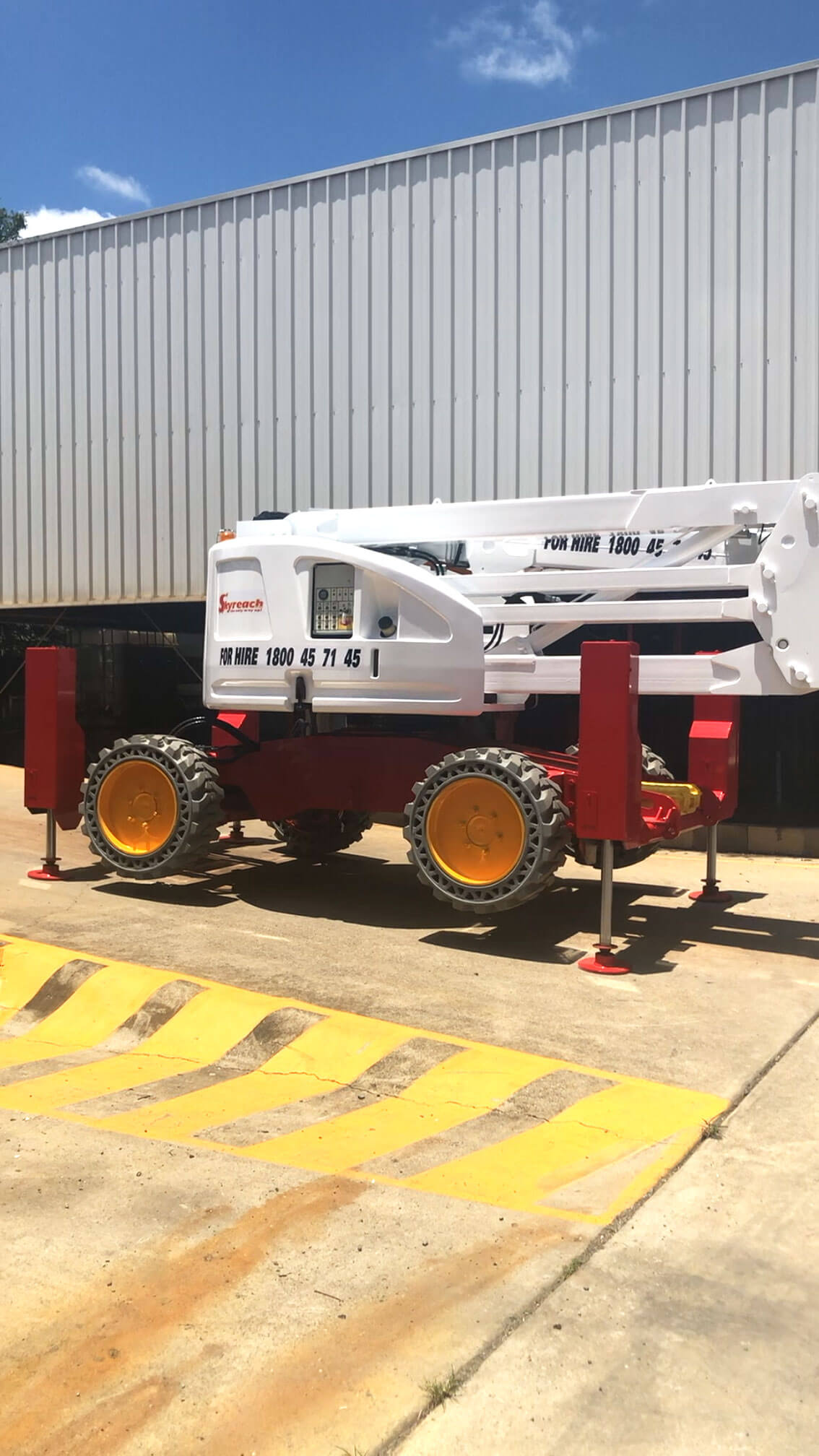

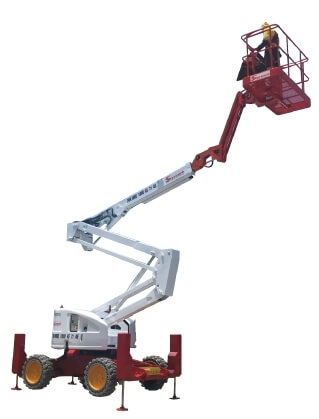

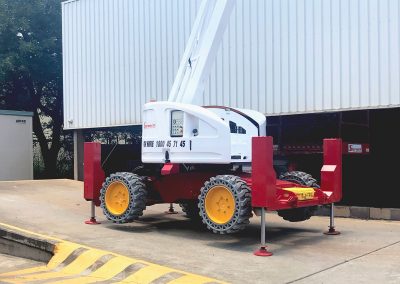

48ft (14.80m) Diesel ATN Knuckle Boom Lift (Jack Boom)

The ATN Zebra 16RT 'Jack Boom' is an off-road 4×4 articulating boom lift, with a working height of 48ft (14.80m) and a lift capacity of 230 kg. Thanks to its high-performance transmission, oscillating axle, high traction tyres, its 4-wheel drive, and ability to provide set-up on slopes of up to 12 degrees, the ZEBRA 16 is ideal for outdoor applications on all terrains. Supplying safety at a working height of 16.80m with the capacity for teams of up to 2 people, this unit also has a horizontal platform outreach of 30ft (9.40m).

Help Me Choose

Max working height 16.80 m

Max working height in narrow set N/A

Max horizontal outreach 9.40 m

Max SWL 230 kg

Weight 8050 kg (8200 kg 4WS)

Turret rotation 360°

Basket rotation 180°

Ground pressure driving (approx) 1422 kN/m2

Max stabiliser force 35.61 kN

Max stabiliser pressure (std foot pad) 667 kN/m2

Traffic load (live load) stabilised narrow N/A

Auto levelling Std

Max permissable tilt 5°

Max slope for stabilisers (no extra pads) 12° x 9°

Gradeability lengthwise 23°

Gradeability sideways 23°

Standard power source Kubota 35 Hp Diesel

Optional power source N/A

Dual power options N/A

Expanding tracks N/A

Drive Speed 6 km/h

Radio control N/A

Electric emergency lowering Optional

Operator's Licence High Risk Work Licence "WP"

Features

Rough terrain
