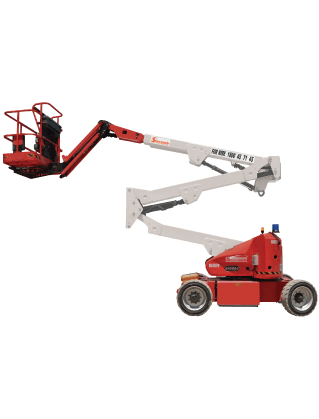

45ft (13.72m) Electric JLG Knuckle Boom Lift

The Electric Articulated 45ft (13.72m) JLG Knuckle Boom Lift is suitable for indoor and slab applications. With low emission and noise, it is designed to reach up 'n' over obstacles with its high-efficiency electric power. Supplying safety at a working height of 15.72m (horizontal outreach: 23ft (7.24m)), with the capacity for two people, this unit also has non-marking tyres. 45ft Boom Lifts are also available in a Genie model.

Help Me Choose

Platform Height 13.72 m

Horizontal Outreach 7.24 m

Up and Over Height 7.7 m

Swing 360° Non-Continuous

Platform Capacity 230 kg

Platform Rotator 180° Hydraulic

Weight 6,670 kg

Overall Jib Length 1.24 m

Jib Rotation Range N/A

Jib Articulation Range 141° (+86° / -55°)

Drive Speed 7.2 km/h

Gradeability 30%

Turning Radius (Inside) 0.61 m

Turning Radius (Outside) 3.15 m

Electrical System 48V DC

Batteries 8 x 6V, 370 amp-hr (305 amp-hr on E300AJP)

Drive Motors Dual Electric Traction—AC

Hydraulic System 19.0 L

Motor / Pump Permanent Magnet Motor / Gear Pump

Tyres 240/ 55-17.5 Foam Filled Non-marking

Platform Size 0.76 x 1.52 m

Overall Width 1.75 m

Tailswing Zero

Stowed Height 2.01 m

Stowed Length 6.45 m

Wheelbase 2.01 m

Ground Clearance 20 cm

Operators Licence High Risk Work Licence "WP"

Features

Zero emissions
Non-marking tyres
Foam-filled tyres
Hydraulic jib
