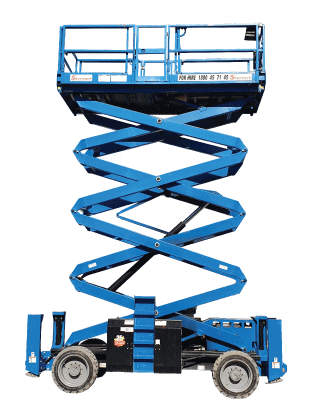

43ft (13.11m) Diesel Genie Scissor Lift

The Diesel 43ft (13.11m) Genie Scissor Lift is fully equipped with outriggers and has 4WD accessibility. It is suitable for outdoor and rough terrain use; it has a gradeability of 50%. Supplying safety at a working height of 15.11m for a team of up to 7 people, this machine has full navigation at max height, with a double extension deck.

Help Me Choose

Working height maximum* 15.11 m 49 ft

Platform height maximum 13.11 m 43 ft

Platform height - stowed 1.80 m 5 ft 11 in

Platform length 3.98 m 13 ft 0.5 in

Platform length: outside, extended 6.57 m 21 ft 6.5 in

Slide-out platform extension deck - front 1.52 m 5 ft

Slide-out platform extension deck - rear 1.22 m 4 ft

Platform width - outside 1.83 m 6 ft

Height: stowed 2.93 m 9 ft 7.5 in

Height: stowed - rails lowered 2.25 m 7 ft 4.75 in

Length - stowed 4.88 m 16 ft

Length - extended 6.57 m 21 ft 6.5 in

Width 2.34 m 7 ft 8 in

Wheelbase 2.84 m 9 ft 4 in

Ground clearance - center 0.36 m 1 ft 2 in

Maximum platform occupancy 7

Lift capacity 680 kg 1,500 lbs

Lift capacity - extension deck 227 kg 500 lbs

Drive height full height

Drive speed - stowed 6.4 km/h 4.0 mph

Drive speed - raised 1.1 km/h 0.7 mph

Gradeability - stowed** 50%

Maximum outrigger leveling: front to back 7°

Maximum outrigger leveling: side to side 12°

Turning radius - inside 2.16 m 7 ft 1 in

Turning radius - outside 5.33 m 17 ft 6 in

Controls proportional

Drive four wheel

Raise / lower speed 47 / 39 sec

Tires - foam-filled rough terrain 30 x 84 cm 12 x 33 in

Power source Deutz D2011L03i 3 cylinder diesel 48 hp (35.8 kW)

Auxiliary power unit 12 V DC

Fuel tank capacity 113.6 L 30 gal

Hydraulic system capacity 113.6 L 30 gal

Weight 6,934 kg 15,285 lbs

Standards Compliance AS 1418.10

Operators Licence Duty of Care Operator Training (e.g. EWPA Yellow Card)

Features

4WD
Non-marking tyres
Rough terrain
Foam-filled tyres
