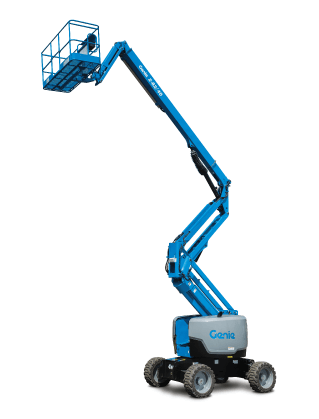

Electric 40ft Genie Knuckle Boom
The Genie Z-40/23 N RJ Articulated Boom Lift, available for hire from Skyreach, is built around tight access constraints, running fully electric with a compact frame, minimal tailswing and a tight turning radius. What sets it apart is the rotating jib, giving you industry-leading horizontal rotation on top of standard vertical reach — a real advantage when you need to work around obstacles rather than repositioning the whole machine each time. Add a 180° hydraulic, self-levelling platform and AC drive for smooth, low-maintenance performance, and you've got a boom that's as easy on the operator as it is on the jobsite. Well matched to sensitive, congested or indoor environments like fit-outs, facilities maintenance and urban construction, it's the hire machine you need when quiet, emission-free operation and manoeuvrability are just as important as reach. Contact Skyreach to arrange equipment rental for your next project.
Working height maximum 14.32 m 46 ft 5 in
Platform height maximum 12.32 m 40 ft 5 in
Horizontal reach maximum 6.91 m 22 ft 8 in
Up and over clearance maximum 6.48 m 21 ft 3 in
Platform length 0.76 m 2 ft 6 in
Platform width 1.17 m 3 ft 10 in
Height - stowed 1.98 m 6 ft 6 in
Length - stowed 6.53 m 21 ft 5 in
Width 1.50 m 4 ft 11 in
Wheelbase 1.96 m 6 ft 5 in
Ground clearance - centre 0.18 m 7 in
Lift capacity 227 kg 500 lbs
Platform rotation 180°
Vertical jib rotation 128°
Horizontal jib rotation 180°
Turntable rotation 355° non-continuous
Turntable tailswing 0.13 m 5 in
Drive speed - stowed 7.2 km/h 4.5 mph
Drive speed - raised 1.1 km/h 0.68 mph
Gradeability - stowed 30%
Turning radius - inside 0.87 m 2 ft 11 in
Turning radius - outside 3.20 m 10 ft 6 in
Controls 24 V DC proportional
Tyres - front 56 x 18 x 45 cm 22 x 7 x 17.75 in
Tyres - rear 64 x 18 x 45 cm 25.6 x 7 x 17.75 in
Power source 48 V DC (eight 6 V batteries) 350 Ah capacity
Drive system 29 V 3 phase AC
Auxiliary power unit 24 V DC
Hydraulic tank capacity 30.2 L 8 gal
Weight 6,940 kg 15,300 lbs
Standards compliance ANSI A92.5, CSA B354.4, CE Compliance, AS 1418.10
Operators Licence High Risk Work Licence "WP"
Features
- Hydraulic jib
- Non-marking tyres
- Zero emissions
The Genie Z-40/23 N RJ Articulated Boom Lift, available for hire from Skyreach, is built around tight access constraints, running fully electric with a compact frame, minimal tailswing and a tight turning radius.
What sets it apart is the rotating jib, giving you industry-leading horizontal rotation on top of standard vertical reach — a real advantage when you need to work around obstacles rather than repositioning the whole machine each time. Add a 180° hydraulic, self-levelling platform and AC drive for smooth, low-maintenance performance, and you've got a boom that's as easy on the operator as it is on the jobsite.
Well matched to sensitive, congested or indoor environments like fit-outs, facilities maintenance and urban construction, it's the hire machine you need when quiet, emission-free operation and manoeuvrability are just as important as reach.
Contact Skyreach to arrange equipment rental for your next project.
