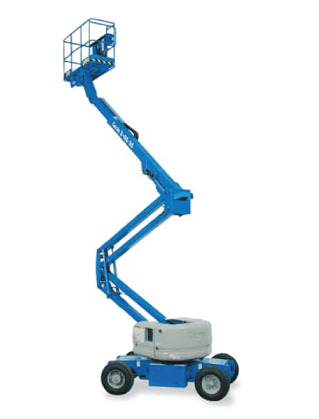

45ft (13.92m) Electric Genie Knuckle Boom Lift

The Electric Articulated 45ft (13.92m) Genie Knuckle Boom Lift is suitable for indoor and slab applications. With low emission and noise, it is designed to reach up 'n' over obstacles with its high-efficiency electric power. Supplying safety at a working height of 15.92m (horizontal outreach: 25ft (7.65m)), with the capacity for two people, this unit also has non-marking tyres. 45ft Boom Lifts are also available in a JLG model.

Help Me Choose
45ft (13.92m) Electric Genie Knuckle Boom Lift
Working height maximum 15.92 m 51 ft 8 in
Platform height maximum 13.92 m 45 ft 8 in
Horizontal reach maximum 7.65 m 25 ft 1 in
Up and over clearance maximum 7.04 m 23 ft 1 in
Platform length 0.76 m 2 ft 6 in
Platform width 1.83 m 6 ft
Height - stowed 2.00 m 6 ft 7 in
Length - stowed 6.83 m 22 ft 5 in
Width 1.79 m 5 ft 10 in
Wheelbase 2.03 m 6 ft 8 in
Ground clearance - centre 0.24 m 9.5 in
Lift capacity 227 kg 500 lbs
Platform rotation 160°
Vertical jib rotation 135°
Turntable rotation 355° non-continuous
Turntable tailswing zero
Drive speed - stowed 4.8 km/h 3.0 mph
Drive speed - raised 1.1 km/h 0.68 mph
Gradeability - stowed 30%
Turning radius - inside 1.83 m 6 ft
Turning radius - outside 4.26 m 14 ft
Controls 24 V DC proportional
Tyres - foam-filled 9 x 14.5 in
Power source - DC 48 V DC (eight 6 V batteries, 350 Ah capacity)
Auxiliary power unit 24 V DC
Hydraulic tank capacity 30.3 L 8 gal
Weight 7,394 kg 16,300 lbs
Standards compliance ANSI A92.5, CSA B354.4, CE Compliance, AS 1418.10
Operators Licence High Risk Work Licence "WP"

Features

  • Zero emissions
  • Non-marking tyres
  • Foam-filled tyres
  • Hydraulic jib
