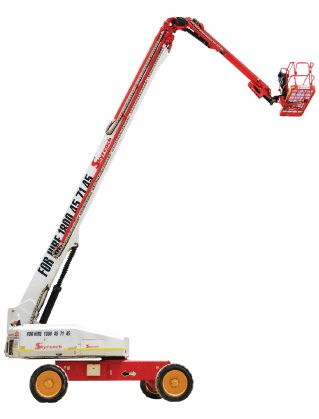

150ft (45.75m) Diesel JLG Boom Lift

Diesel 150ft (45.75m) JLG Straight Stick Boom Lift has 4WD capabilities, full height navigation and maneuverability, and is fitted with a generator. With a hydraulic jib providing extra reach, Boom Lift is perfect for up 'n' over access. Supplying safety from a maximum working height of 156ft (47.75m) for up to 2 people, this machine offers a horizontal outreach length of 80ft (24.38m).

Help Me Choose

Platform Height 45.75 m

Horizontal Outreach 24.38 m

Swing 360° Continuous

Platform Capacity-Restricted 450 kg

Platform Capacity-Unrestricted 230 kg

Platform Rotator 180° Hydraulic

Jib Length 4.62–7.62 m

Jib Range of Articulation 120° (+75, -45)

Weight 21,772 kg

Drive Speed 4.5 km/h

Gradeability 40%

Turning Radius (Inside) — Axles Retracted 4.4 m

Turning Radius (Inside) — Axles Extended 2.4 m

Turning Radius (Outside) — Axles Retracted 6.8 m

Turning Radius (Outside) — Axles Extended 5.9 m

Diesel Engine — Deutz TD2011LO40 56 kW 75 hp

Fuel Tank Capacity 200 L

Hydraulic Tank Capacity 208 L

Tyres — Standard 445/50D710 24 ply Urethane-Filled

Platform Size 0.91 x 2.44 m

Overall Width Axles Retracted 2.49 m

Overall Width Axles Extended 3.81 m

Tailswing 1.67 m

Stowed Height 3.05 m

Overall Length Jib Stowed 13.11 m

Overall Length Jib Deployed 18.82 m

Wheel Base 3.81 m

Ground Clearance — Axle 30 cm

Ground Clearance — Chassis 65 cm

Operators Licence High Risk Work Licence "WP"

Features

4WD
Foam-filled tyres
Generator fitted
Hydraulic jib
Rough terrain
