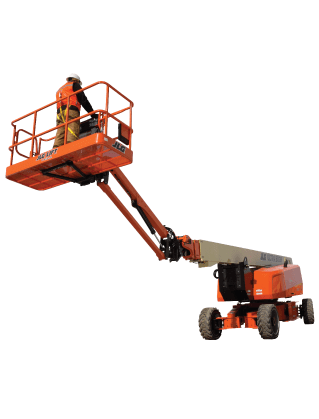

150ft (46.15m) Diesel JLG Knuckle Boom Lift

Diesel Articulated 150ft (46.15m) JLG Knuckle Boom Lift is 4WD, and suitable for outdoor and rough terrain use. This machine is designed to reach up 'n' over obstacles. Supplying safety at a working height of 48.15m with the capacity for teams of up to 2 people, this unit also has a horizontal platform outreach of 75ft (22.86m)

Help Me Choose

Platform Height 45.72 m 150ft

Horizontal Outreach 22.86 m

Up and Over Height 18.29 m

Swing 360° Continuous

Platform Capacity-Restricted 450 kg

Platform Capacity-Unrestricted 270 kg

Platform Rotator 180° Hydraulic

Jib Length 2.4 m

Jib Range of Articulation 130° (+75, -55)

Jib Horizontal Rotation 125° (55 right, 70 left)

Weight 26,039 kg

Drive Speed 4.5 km/h

Gradeability 40%

Turning Radius (Inside) – Axles Retracted 7.12 m

Turning Radius (Inside) – Axles Extended 2.3 m

Turning Radius (Outside) – Axles Retracted 9.52 m

Turning Radius (Outside) – Axles Extended 6.6 m

Tailswing – Tower up 0

Tailswing – Tower down 2.49 m

Diesel Engine Deutz TCD 3.6L Tier 4i 74.4 kW

Fuel Tank Capacity 170 L

Hydraulic Tank Capacity 352 L

Tyres – Standard 445/50D710 24 ply Foam-Filled

Platform Size .91 x 2.44 m

Overall Width Axles Retracted 2.5 m

Overall Width Axles Extended 5 m

Stowed Height 3.1 m

Overall Length Jib Deployed 15.1 m

Overall Length Jib Stowed 12.09 m

Operators Licence High Risk Work Licence "WP"

Features

Foam-filled tyres
Generator fitted
Hydraulic jib
4WD
